產(chǎn)品描述：
超結 MOSFET
| Part Number | VDS (V) | ID (A) 25℃ | PD(W) 25℃ | RDS(ON)(mΩ) (VGS=10V)（Max） | Qg(nC)(VGS=10V) （Typ） | VGS(V) | VGS(th)(V) （Typ） | Package |
|---|---|---|---|---|---|---|---|---|
| RMC70R1K0SN | 700 | 4 | 30 | 1000 | 9.1 | 30 | 3.3 | TO-220F |
| RMG70R1K0SN | 700 | 4 | 37 | 1000 | 9.1 | 30 | 3.3 | TO-251 |
| RMA70R1K0SN | 700 | 4 | 37 | 1000 | 9.1 | 30 | 3.3 | TO-252 |

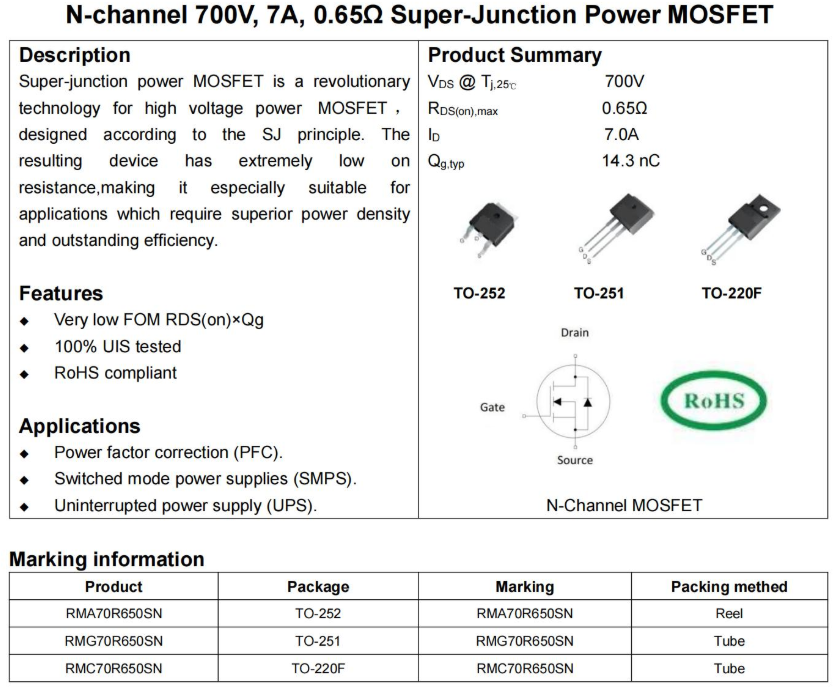

| RME70R650SN | 700 | 7 | 110 | 650 | 13.3 | 30 | 3.3 | TO-263 |
| RMC70R650SN | 700 | 7 | 32 | 650 | 13.3 | 30 | 3.3 | TO-220F |
| RMG70R650SN | 700 | 7 | 63 | 650 | 13.3 | 30 | 3.3 | TO-251 |
| RMK70R380SN | 700 | 11 | 118 | 380 | 19.2 | 30 | 3.3 | PDFN8*8 |
| RME70R380SN | 700 | 11 | 125 | 380 | 19.2 | 30 | 3.3 | TO-263 |
| RMC70R380SN | 700 | 11 | 33 | 380 | 19.2 | 30 | 3.3 | TO-220F |
| RMA70R380SN | 700 | 11 | 118 | 380 | 19.2 | 30 | 3.3 | TO-252 |
| RMA70R650SN | 700 | 7 | 63 | 650 | 13.3 | 30 | 3.3 | TO-252 |
| RMK70R280SN | 700 | 15 | 132 | 280 | 26 | 30 | 3.3 | PDFN8*8 |
| RME70R280SN | 700V | 15 | 158 | 280 | 26 | 30 | 3.3 | TO-263 |
| RMC70R280SN | 700V | 15 | 34 | 280 | 26 | 30 | 3.3 | TO-220F |
| RMA70R280SN | 700V | 15 | 132 | 280 | 26 | 30 | 3.3 | TO-252 |
